Industrial tablet PCs with HMI panel and Android system are perfect computing solution when your application requires the PC to be integrated into equipment. They are made to last and running reliably 24/7.
Product Color
Android Industrial Rugged Touch Panel PC WIFI RJ45 Port Capacitive Touch Screen 15.6"
Model: TPC156-A4
Touch Think offers a full range of industrial all-in-one touch panel PCs for professional industrial applications. They are equipped with excellent A or A + perfect screen and fit with fanless advanced box PC, can be used for indoor and outdoor applications. What's more, they perform perfectly under high bright sunlight or harsh environments. With self factory and complete production line, our industrial tablet PCs with Android OS are of premium quality, low-cost, and economically competitive.
Product Features
● LCD Display: 15.6", 1920*1080, 16:9 ratio.
● 7" to 23.8" displays for optional.
● CPU: A64 quad-core 64-bit, main frequency 1.5GHz.
● RAM: 2GB DDR3 (8GB optional)
● Storage: 16GB eMMC (32/64GB optional)
● Operating system: Android 6.0 (Android 7.1 optional)
● 10mm thickness bezel for the front panel, good impact-resistant in harsh environments.
● IP65 rated dust-proof and waterproof, light and thin for whole panel PC.
● Industrial-grade motherboard, highly stable performance, low power consumption.
● Pre-installed Android system, supports other systems: Windows, Linux, Ubuntu.
● Wide operating temperature: -10°C to +60°C.
● Fanless design: suitable for harsh environments.
● Optional Wi-Fi/3G/4G kit for wireless network connectivity.
● Supports VESA 75/100mm and suspension mount.
● CE, RoHS certified
Touch Think Industrial Android all-in-one Touch Panel PCs Display

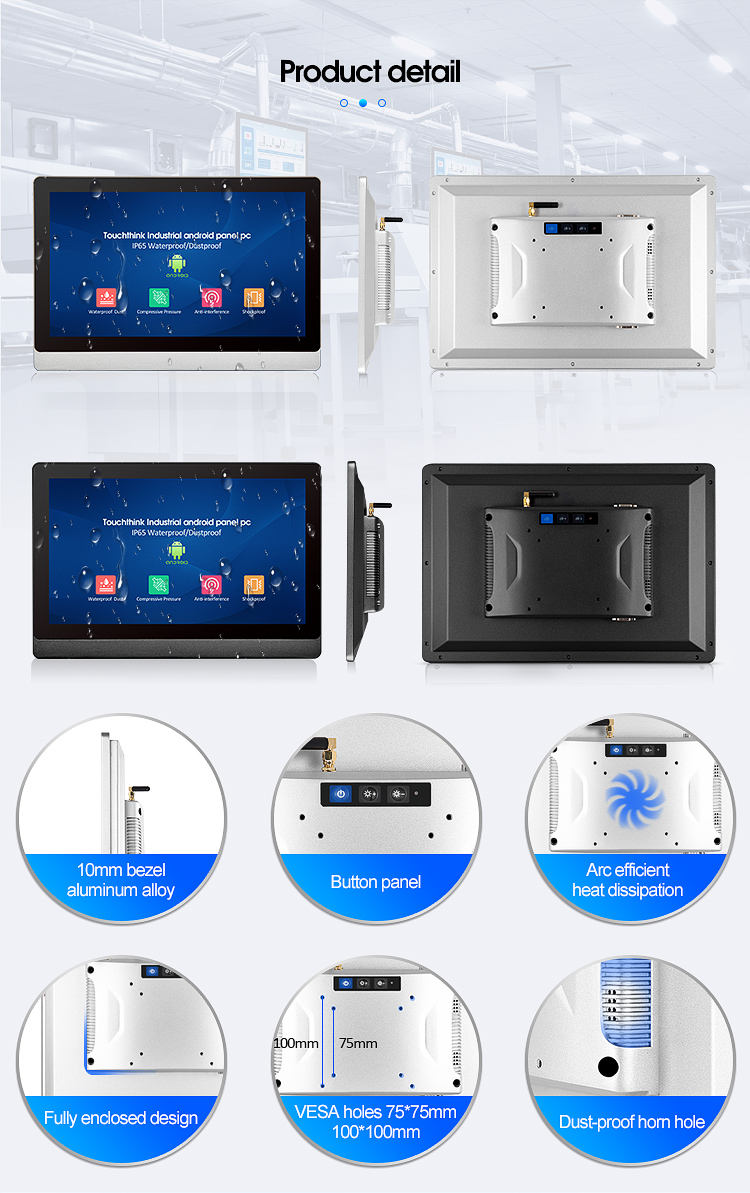

Details of Touch Think All-in-one Panel PCs
Industrial Android Panel PC - Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
| TPC070-A-QD | 7" | 1024*600 | 16:9 | Capacitive / Non-touch | Inquiry |
| TPC080-A-QD | 8" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
| TPC101-A4 | 10.1" | 1280*800 | 16:10 | Capacitive / Non-touch | Inquiry |
| TPC104-A4 | 10.4" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
| TPC116-A4 | 11.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
| TPC120-A4 | 12" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
| TPC150-A4 | 15" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
| TPC156-A4 | 15.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
| TPC170-A4 | 17" | 1280*1024 | 5:4 | Capacitive / Non-touch | Inquiry |
| TPC173-A4 | 17.3" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
| TPC190-A4 | 19" | 1280*1024 | 5:4 | Capacitive / Non-touch | Inquiry |
| TPC191-A4 | 19.1" | 1440*900 | 16:10 | Capacitive / Non-touch | Inquiry |
| TPC215-A4 | 21.5" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
| TPC238-A4 | 23.8" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
| Display Parameters | Size | 15.6" | |||||
| Resolution | 1920x1080 | ||||||
| Screen Ratio | 16:9 | ||||||
| Brightness | 300 nits (Optional high brightness) | ||||||
| Contrast Ratio | 800:1 | ||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
| Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||||
| 5G | / | / | / | / | / | / | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||||
| EDP | / | 1920*1080 60Hz output | |||||
| MIPI | Support 1920*1080 60Hz output | ||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | |||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | Support | Support | |
| CAN | / | / | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||||
| MIC | Support | Support | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||||
| I/O Expansion | Available | ||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 389.6*264*60mm | |||||
| Enclosure | Aluminum alloy housing | ||||||
| Cooling System | Fanless | ||||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||||
| Storage Temp | -30°C ~ 80°C | ||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
| IP rating | Front IP65 | ||||||
This 15.6 inch industrial tablet PC is perfect for used in the following applications:
Industrial automation
Information kiosk
Ticketing machine
Vending machine
Point of sale terminals
Medical equipment
Food processing machine
Testing equipment
We offer customization service for global customers, please feel free to contact us for any details.
