Android All In One Tablet PC With Industrial Use Touchscreen 8"

Size: 8"

Touch Think industrial-grade tablet PC with Android operating system offers an easy-to-use HMI interactive Android interface in an aluminum alloy enclosure and is produced with IP65 rating protection for the surface panel. They're built for extremely harsh environments and special applications.

Product Color

Black Silvery
Inquiry Now Next Product
  • product description
  • Product parameters
  • Application
  • OEM/ODM

Android All-In-One Tablet PC With Industrial Use Touchscreen 8"


Model: TPC080-QD2


· Material: Aluminum alloy structure

· Color: Black/Silver

· Environment: indoor/outdoor

· Panel: HD industrial TFT LCD

· Way To Install: desktop | wall mounted |VESA


Display ParametersSize8"
Resolution1024x768
Screen Ratio4:3
Brightness250~300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle89/89/89/89 (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options









Motherboard Model SelectionJWS64
JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
SATA////Support/1*SATA hard drive port
Operating SystemAndroid 6.0Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0

Android 7.1 / 9.0 / 11 / Ubuntu18.04 /

 Debian10.0 / Linux4.4

Android 7.1/9.0/11,

Linux 4.4 / Ubuntu 18.04 / Debian 10

Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11Android 13.0Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04









NetworkingEthernet1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
4GOptional. Based on the 4G module selection
5G

/

/////Support M.2 5G module interface
WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









Display FunctionLVDSSupport 1920*1080 60Hz output
EDP/1920*1080 60Hz output4K 3840*2160 output
MIPISupport 1920*1080 60Hz output
Mipi Camera30pin FPC interface, support 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI Input/HDMI Input, 24-pin FPC custom interface/HDMI Input, 24-pin FPC custom interface//HDMI 2.0, support 4K 3840*2160 60Hz input
Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

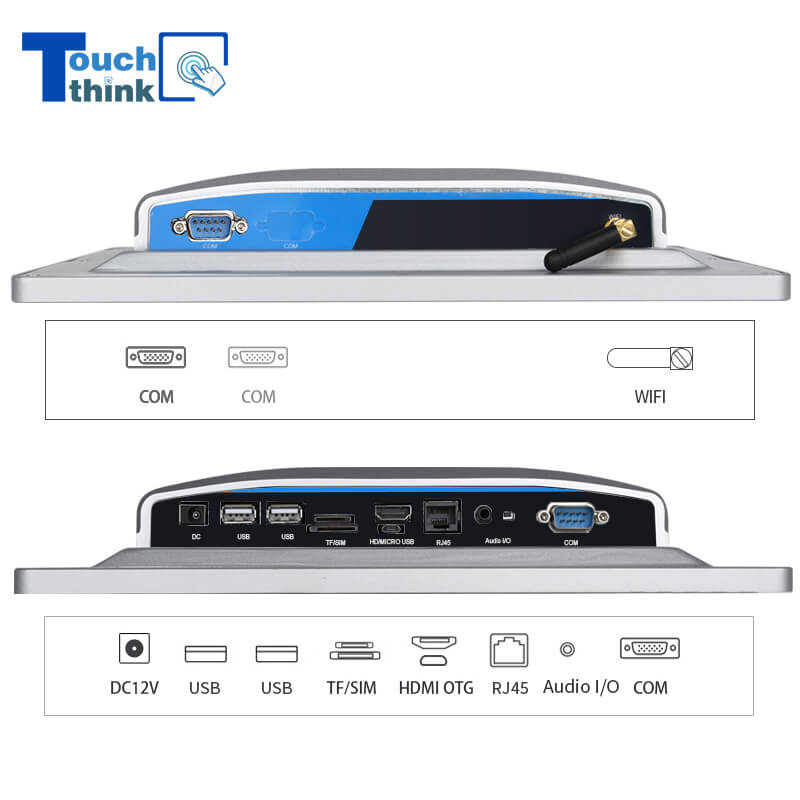

I/O PortsMICRO USB1*MICRO USB (OTG)/////
USB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 (including OTG*1) + USB2.0*6 on boardUSB2.0*5 on boardUSB2.0*1 + USB2.0*5 on boardUSB2.0*4 on boardUSB2.0*1 + USB2.0*4 on boardUSB2.0*5 on board
USB 3.0//USB3.0*2 (including OTG*1)USB3.0*1（OTG)USB3.0*2 (including OTG*1)
USB3.0*1（OTG)
USB3.0*4 (including OTG*1)
RS2323*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalRS232*2RS232*2RS232*2RS232*2RS232*1; RS232/TTL*2 (optional)
RS485 / (Unless install RS232 to RS485 converter)RS485*1RS485*1RS485*1RS485*1RS485*1
TTL3*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalTTL*2TTL*2TTL*2TTL*2TTL*1; RS232/TTL*2 (optional)
GPIO3*GPIO output, 1*GPIO input, and 1*ADC portGPIO*7 (input/output)GPIO*8 (input/output)GPIO*8 (input/output)GPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupportSupportSupportSupportSupport
TF SlotSupportSupportSupportSupportSupportSupport
CAN////SupportSupport
Speaker3.5mm standard Jack
MICSupportSupportSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Available









PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A

MechanicalDimension225.5*185*64.5mm
EnclosureAluminum alloy housing
Cooling SystemFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65
