Size: 10.1"
This wide screen industrial grade tablet PC is pre-installed Android operating system, suitable for manufacturing industry, power distribution box, smart warehousing, industrial field service,.etc.
Product Color

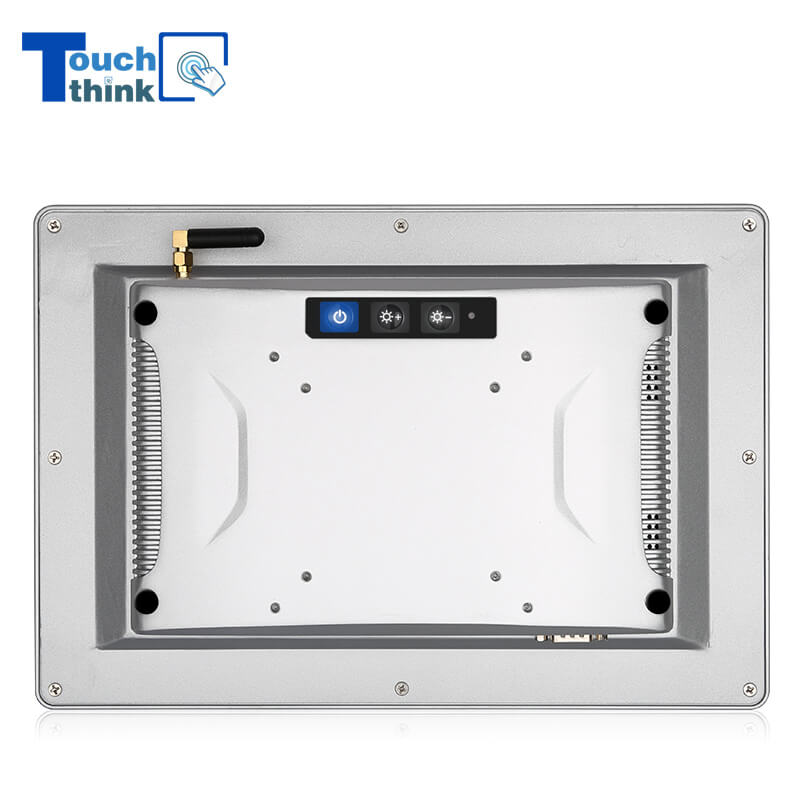

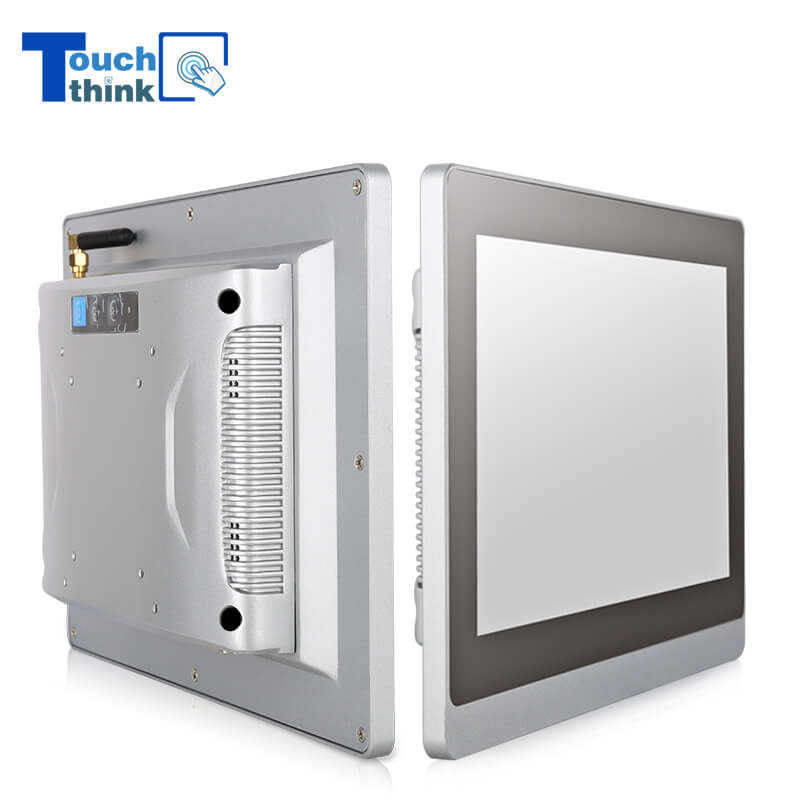

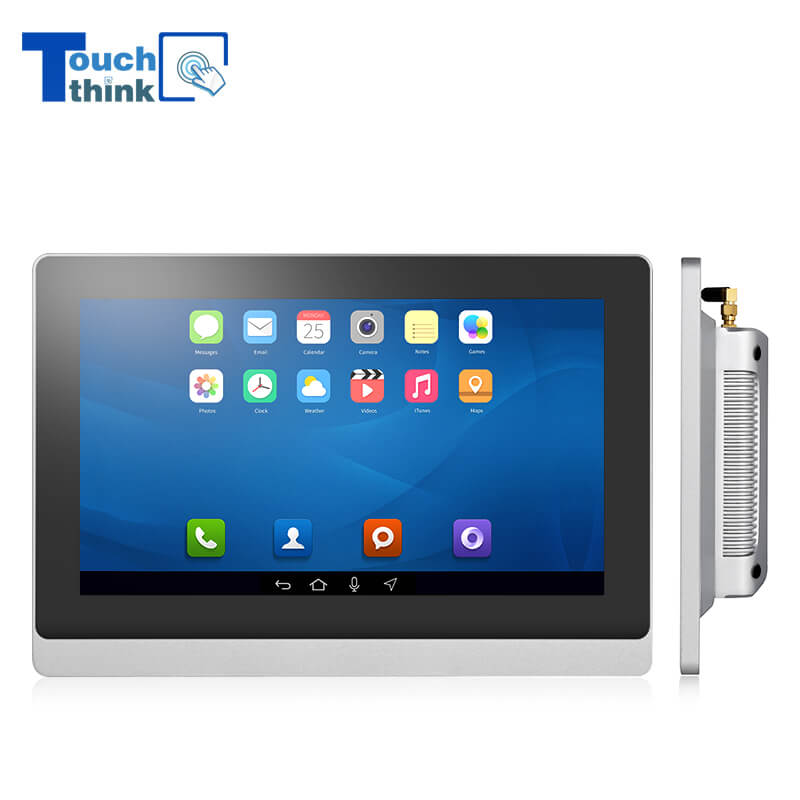

10.1" Industrial Tablet PC with Android OS with CE & RoHS Approved
Model: TPC101-A4
Touch Think Android industrial panel PCs are designed to perfect running under harsh conditions and can be placed into extreme high or low-temperature industrial environments. They are support sunlight readable for outdoor terminals and self-service devices for 24 hours * 7 days. This standardized industrial Android panel PC offers two colors: black and silver, customized color are available. Reliable IP65 rated dustproof and waterproof performance is perfect for outdoor devices.
Industrial Android Panel PC - Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touchscreen Type | Front Bezel Option | Get A Quote Now |
| TPC070-A-QD | 7" | 1024*600 | 16:9 | Capacitive / Non-touch | 8mm | Inquiry |
| TPC080-A-QD | 8" | 1024*768 | 4:3 | Capacitive / Non-touch | 8mm | Inquiry |
| TPC101-A4 | 10.1" | 1280*800 | 16:10 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC104-A4 | 10.4" | 1024*768 | 4:3 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC116-A4 | 11.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC120-A4 | 12" | 1024*768 | 4:3 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC150-A4 | 15" | 1024*768 | 4:3 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC156-A4 | 15.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC170-A4 | 17" | 1280*1024 | 5:4 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC173-A4 | 17.3" | 1920*1080 | 16:9 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC190-A4 | 19" | 1280*1024 | 5:4 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC191-A4 | 19.1" | 1440*900 | 16:10 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC215-A4 | 21.5" | 1920*1080 | 16:9 | Capacitive / Non-touch | 3 / 7 / 10mm | Inquiry |
| TPC238-A2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Non-touch | 3mm | Inquiry |
Industrial Tablet PC with Android OS CE RoHS Approved 10.1"

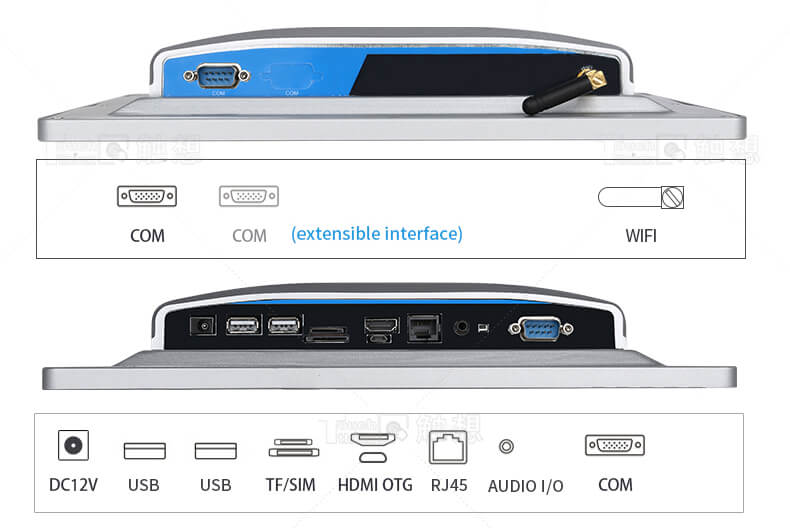

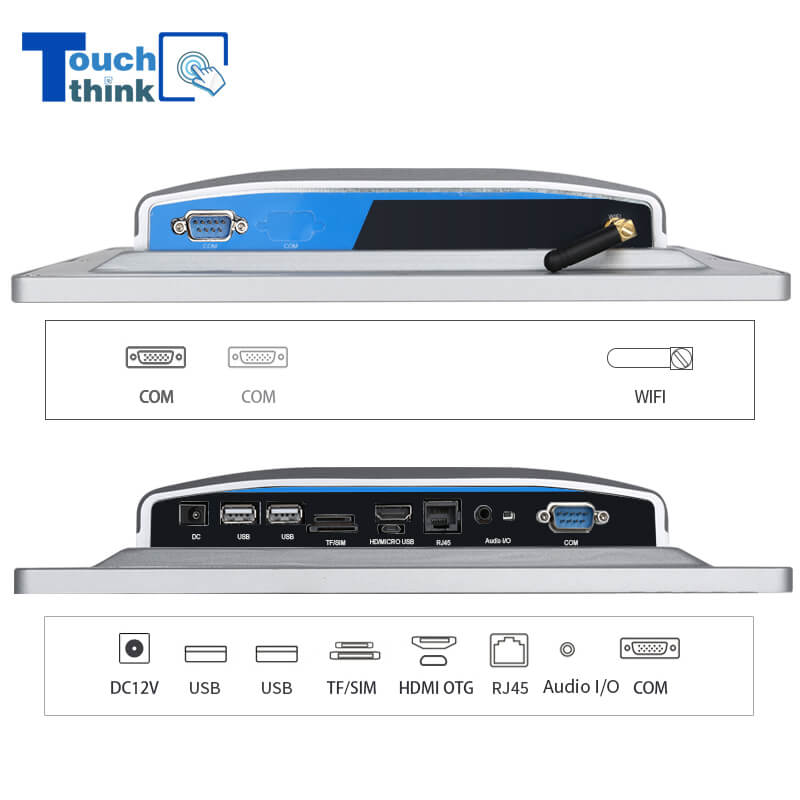

Touch Think Industrial Android All-in-one Panel PC Interface Display
| Display Parameters | Size | 10.1" | |||||
| Resolution | 800x1280 / 1280x800 | ||||||
| Screen Ratio | 16:10 / 10:16 | ||||||
| Brightness | 300 nits (Optional high brightness) | ||||||
| Contrast Ratio | 1000:1 | ||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
| Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||||
| 5G | / | / | / | / | / | / | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||||
| EDP | / | 1920*1080 60Hz output | |||||
| MIPI | Support 1920*1080 60Hz output | ||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | |||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | Support | Support | |
| CAN | / | / | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||||
| MIC | Support | Support | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||||
| I/O Expansion | Available | ||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 261.4*185.4*56mm | |||||
| Enclosure | Aluminum alloy housing | ||||||
| Cooling System | Fanless | ||||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||||
| Storage Temp | -30°C ~ 80°C | ||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
| IP rating | Front IP65 | ||||||
Touch Think Android Industrial All-in-one Tablet PCs Mainly Used On Industry Fields
In recent years, industrial Android tablet PC control technology has been widely used in the production process of various large and medium-sized enterprises to realize the detection, control, optimization, scheduling, management, and decision-making of industrial production process, so as to improve the product quality and output, ensure safety and improve productivity. The application of control theory, instrumentation, industrial Android tablet PC, and other information technology has greatly promoted the development of automatic control technology for Android industrial computers. The close combination of automatic control theory and computer information science has brought new technological innovation to the industrial production process. Some specific applications include CNC machining, industrial Robot, textile manufacturing, machinery manufacturing, welding and cutting apparatus and accessories, machine vision, electronics manufacturing, food & packaging, etc.
In various industrial on-sites, the application of computer automatic control technology is very active. Computer technology, network technology, and industrial control technology can be applied to almost all kinds of factories, production workshops, and production lines. For example, engine factories, automobile factories, power plants, steel plants, and so on. However, the industrial site is different from the office or other place of a public institution, where the general environment is relatively bad, with a strong magnetic field, thousands of volts of high voltage electricity, dust, and strong noise, which requires the computer control system of the industrial site and to have better performance and stronger anti-interference ability. Moreover, in the industrial fields, normally equips with many high-value types of equipment, which requires a set of computer automatic control system with high reliability different from ordinary office computers (such as 7*24 hours of continuous trouble-free work), otherwise, it will cause great economic losses.
10.1-inch industrial Android panel PC support OEM and ODM service, please feel free to contact us for details.
