Size: 19.1"
This industrial tablet PC is an essential tool for industrial enterprise site applications. To withstand your use in data collection, navigation, construction engineering, land Surveying, field maintenance, industrial measurement, warehouse & logistics management, etc.
Product Color
Industrial PC with Multi-Touch 19.1 Inch
Model: TPC191-A200
19.1 inch Touch Think industrial panel PC with touch screen monitor or without a touchscreen, offering many different types for installation including desktop, VESA, panel mount, wall-mounted, and embedded mounting with a wide variety of touch interface options.
Touch Think Industrial Android Tablet PC Features
● Anti-interference design to meet EMI standards.
● Adopt to Aluminium alloy shell, with good mechanical properties, and high heat dissipation.
● Support long-time and all-weather running, up to 7*24 hours operation without stopping.

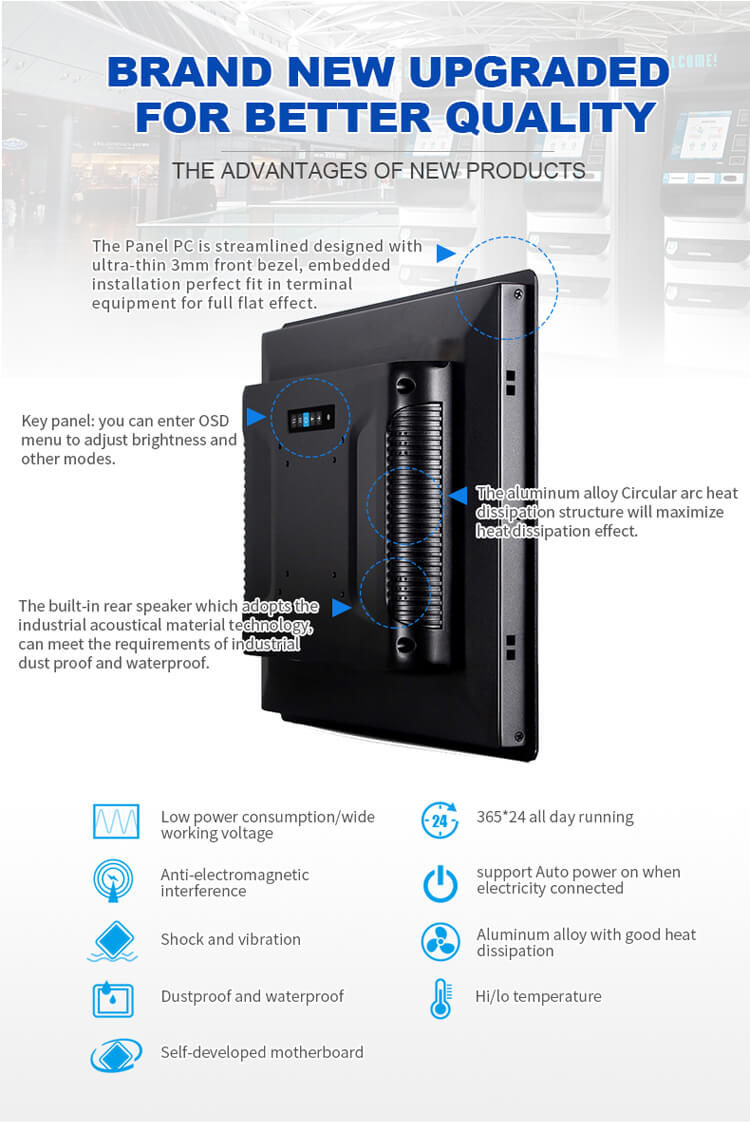

● The front bezel thickness of this panel PC’ is only 3mm, perfect for embedding into cabinets.
● Front IP65 waterproof and dust-proof standards for harsh or outdoor applications.
● Triple protection for the whole tablet: explosion-proof, flameproof, and moisture-proof.
● It adopts industrial control HD LCD screen + LED backlight screen, providing a perfect color display.
● Support capacitive touch screen and non-touchscreen. Suitable for various industrial environments and terminal devices.
● Special design for DC power port with anti-shedding, and support DC cable optional.
● Support multi-installation types, such as wall-mounted, embedded, desktop, and VESA 75/100.
● Shock resistance standard reaches GB2423, it can be well-protected during transportation and working on marine applications.
● Working temperature range: -20~70 Celsius degree, (-4 ~158 Fahrenheit degree), humidity range is 10%~90%.
● Anti-static level of contact is 4KV, supporting customized MAX 16KV.

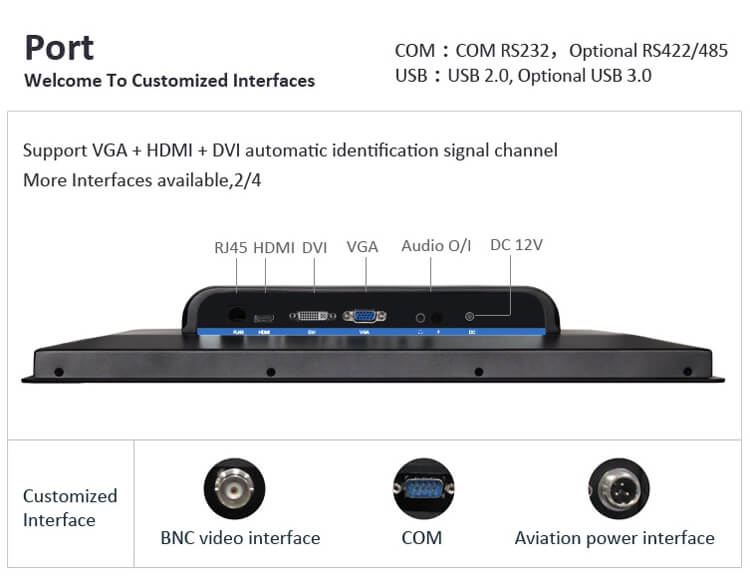

● Provide standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel, also support other customized multi interfaces.
● Two standard colors are black and silver, but we provide appearance color customization service for customers.
| Display Parameters | Size | 19.1" | ||||||
| Resolution | 1440x900 | |||||||
| Screen Ratio | 16:10 | |||||||
| Brightness | 250~300 nits (Optional high brightness) | |||||||
| Contrast Ratio | 1000:1 | |||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | |||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
| Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet |
| 4G | Optional. Based on the 4G module selection | |||||||
| 5G | / | / | / | / | / | / | Support M.2 5G module interface | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
| Display Function | LVDS | Support 1920*1080 60Hz output | ||||||
| EDP | / | 1920*1080 60Hz output | 4K 3840*2160 output | |||||
| MIPI | Support 1920*1080 60Hz output | |||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | |||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | ||||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | HDMI 2.0, support 4K 3840*2160 60Hz input | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / | |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | USB2.0*5 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*4 (including OTG*1) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | RS232*1; RS232/TTL*2 (optional) | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | TTL*1; RS232/TTL*2 (optional) | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | ||
| SIM Slot | Support | Support | Support | Support | Support | Support | ||
| TF Slot | Support | Support | Support | Support | Support | Support | ||
| CAN | / | / | / | / | Support | Support | ||
| Speaker | 3.5mm standard Jack | |||||||
| MIC | Support | Support | Support | Support | Support | Support | ||
| Audio Port | 3.5mm earphone jack, support input/output | |||||||
| I/O Expansion | Available | |||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 486*332*63mm | ||||||
| Enclosure | Aluminum alloy housing | |||||||
| Cooling System | Fanless | |||||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -20°C ~ 70°C | ||||||
| Storage Temp | -30°C ~ 80°C | |||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
| IP rating | Front IP65 | |||||||
Our industrial tablet PCs are suitable for universal use, such as healthcare devices, building automation, industrial automation, industry 4.0, IOT, commercial terminals, POS system, fleet management, logistics and warehouse management,. etc.
If you need advice for your special application, do not hesitate to contact our technical sales or support. We will find the right solution together
We support kinds of customization service, please feel free to contact us for details.
