Size: 27"
The 27-inch Industrial Android Panel PC with WiFi 6, Bluetooth 5.2, and Google Play integration is a versatile and robust solution that meets the diverse needs of modern businesses.
Product Color

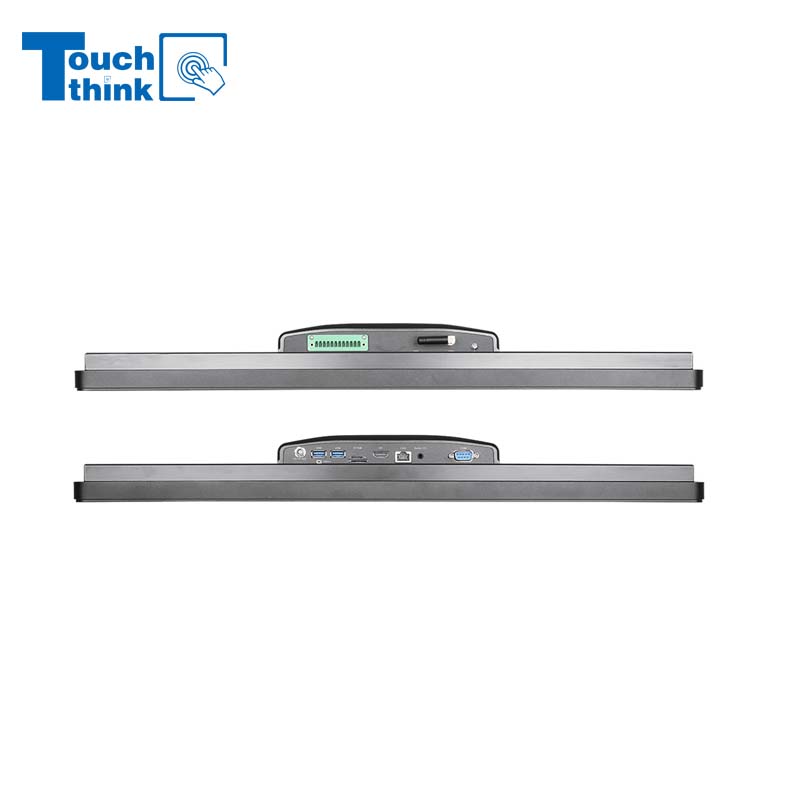

27 inch Industrial Android Panel PC with WIFI 6 BT5.2 Google Play For Advertising, Kiosks & Digital Signage
Model: TPC270-A19
Product Features
● Large 27-Inch Display
The 27-inch Industrial Android Panel PC boasts a large, high-definition display, making it perfect for visually driven environments. Its expansive screen size offers exceptional clarity and brightness, ensuring that advertisements, product information, and interactive content are clearly visible to audiences, even in high-traffic areas.
● Android OS with Google Play Integration
This device runs on the widely popular Android operating system, providing a familiar and user-friendly interface. What sets it apart is its Google Play integration, allowing users to access and download a vast array of apps, including customized apps for digital signage, advertising, and customer interaction. The open nature of the Android OS allows businesses to install third-party applications or develop their own, offering flexibility and customization in various environments.
● WiFi 6: Next-Generation Connectivity
The inclusion of WiFi 6 technology ensures this panel PC offers faster, more reliable, and energy-efficient wireless connectivity. Whether it's streaming high-definition video content, syncing with cloud-based services, or managing multiple digital signage units across different locations, WiFi 6 delivers the bandwidth and speed necessary for seamless performance. This makes it ideal for locations like shopping malls, airports, and transit stations, where high traffic can strain networks.
● Bluetooth 5.2
With Bluetooth 5.2, the panel PC offers enhanced wireless communication, including faster data transmission and improved connectivity over longer distances. This feature is particularly valuable for interactive kiosks, enabling smooth pairing with smartphones and other Bluetooth-enabled devices. Whether it’s for mobile payments, data syncing, or touchless user interactions, Bluetooth 5.2 enhances customer experience by enabling quick and secure connections.
● Durability for Industrial Environments
While the 27-inch Industrial Android Panel PC shines in customer-facing applications, it's also designed to endure the challenges of industrial settings. Its robust build ensures resistance to dust, water, and temperature fluctuations, making it a reliable solution in demanding environments such as warehouses, production facilities, or outdoor digital signage installations.
Display Parameters | Size | 27" | |||
Resolution | 1920x1080 | ||||
Screen Ratio | 16:9 | ||||
Brightness | 250~300 nits (Optional high brightness) | ||||
Contrast Ratio | 1000:1 | ||||
Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||
Backlight type | LED backlight screen, service life ≥ 50000H | ||||
Touch Screen | Capacitive, Resistive, or Non-touch options | ||||
Motherboard Model Selection | JWS3288-I | CX3399-A | CX3568-A | CX3588-A | |
System Architecture | CPU | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
Memory (DDR) | 2GB (4GB optional) | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
Storage (eMMC) | 16GB (32/64/128/256GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | Support | / | |
Operating System | Android 7.1 / 10.0, Linux4.4, Ubuntu18.04, Debian10.0 | Android 7.1/9.0/11, Linux 4.4, Ubuntu 18.04, Debian 10 | Android 12/14, Linux5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux5.10, Ubuntu 20.04/22.04, Debian 11 | |
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
4G | Optional. Based on the 4G module selection | ||||
5G | / | / | / | / | |
WIFI | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
Display Function | LVDS | Support 1920*1080 60Hz output | |||
EDP | 1920*1080 60Hz output | ||||
MIPI | Support 1920*1080 60Hz output | ||||
Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||
HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||
HDMI Input | HDMI Input, 24-pin FPC custom interface | HDMI Input, 24-pin FPC custom interface | / | / | |
Touch Function | Touch Interface | USB | USB/IIC | ||
I/O Ports | MICRO USB | / | / | / | / |
USB 2.0 | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
USB 3.0 | / | USB3.0*1(OTG) | USB3.0*2 (including OTG*1) | USB3.0*1(OTG) | |
RS232 | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | |
RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | |
TTL | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | |
GPIO | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
SIM Slot | Support | Support | Support | Support | |
TF Slot | Support | Support | Support | Support | |
CAN | / | / | Support | Support | |
Speaker | 3.5mm standard Jack | ||||
MIC | Support | Support | Support | Support | |
Audio Port | 3.5mm earphone jack, support input/output | ||||
I/O Expansion | Available | ||||
Power | Power Input | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Enclosure | Aluminum alloy housing | |||
Cooling System | Fanless | ||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||
Storage Temp | -30°C ~ 80°C | ||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||
IP rating | Front IP65 |
Applications in Advertising, Kiosks, and Digital Signage
1. Advertising Displays
Businesses are always looking for innovative ways to captivate their target audience, and this 27-inch panel PC is the perfect platform for dynamic advertising displays. With its large screen, sharp resolution, and WiFi 6 capabilities, the device can stream high-quality video advertisements, interactive campaigns, and real-time promotions. Its Android operating system allows advertisers to easily manage content remotely, making it simple to update or rotate ads based on specific criteria such as time of day, location, or audience engagement.
2. Interactive Kiosks
Interactive kiosks are becoming a staple in customer service environments, from retail stores to restaurants and public services. With the Android OS, users can easily navigate menus, check product availability, or access information. The integration of Bluetooth 5.2 enables secure and quick connections to mobile devices for tasks such as mobile payments or data sharing. Whether used in self-checkout stations, wayfinding kiosks, or information booths, this panel PC enhances customer convenience while reducing operational costs.
3. Digital Signage
The digital signage market is rapidly growing, and businesses are constantly searching for versatile, reliable, and cost-effective solutions. The 27-inch Android Panel PC delivers on all fronts. Its remote management capabilities allow for easy updating of content across multiple displays, while the WiFi 6 technology ensures smooth video playback and real-time updates without lag. Additionally, its industrial-grade durability ensures long-term use in both indoor and outdoor environments, making it perfect for everything from retail signage to public information displays.
