Size: 15"
15-inch industrial Android panel PC from Touch Think adopts ARM Processors to provide high computing performance with various CPU options, and a fanless cooling system.
Product Color
Embedded Android Industrial Tablet Computer 15"
Model: TPC150-A19

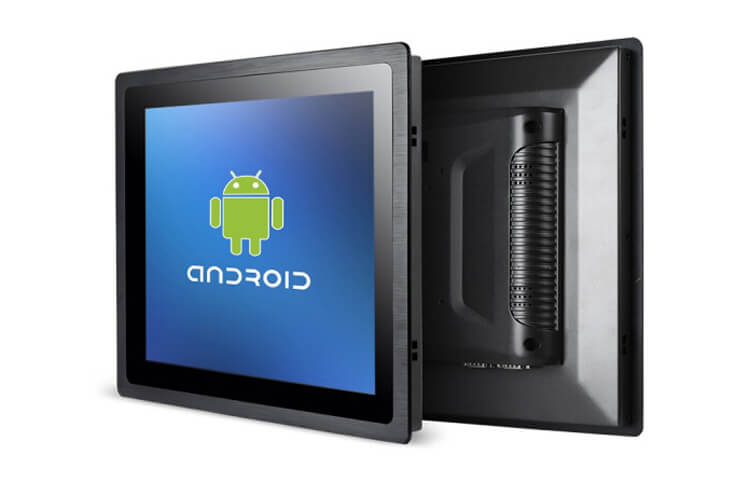

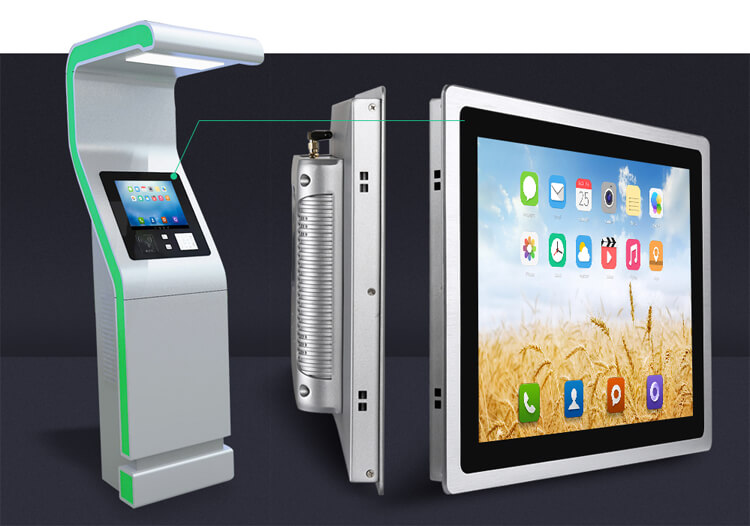

Touch Think 15-inch industrial Android tablet PC with 4:3 square screen, features an ultra-thin front bezel, and a full flat panel. Offer customization service for colors, appearance, functional modules, expansion I/O ports, and HMI interfaces. It is ideal for embedding cabinets, touch Kiosks, and other outdoor terminals. Including automatic vending machines, self-service ticket selling and picking-up, service robots, vehicle intelligent terminals, medical imaging equipment, military equipment, and smart education devices.
Android Industrial Panel PC Features
● RK3568 quad-core high-speed CPU, 2.0GHz
● Ultra-thin front panel, seamless enclosed design, perfectly embedded into the cabinet and other devices.
● Full flat panel with IP65 water-proof and dust-proof standard.
● Supports 4K decoding and multi-screen display.
● Provide SDK for second development and self-programming for APP.
● Gigabit network port, supports WiFi 6 high-speed wireless transmission.
● Fanless design for heat dissipation, ultra-low power consumption
Display Parameters | Size | 15" | |||
| Resolution | 1024x768 | ||||
| Screen Ratio | 4:3 | ||||
| Brightness | 350 nits (Optional high brightness) | ||||
| Contrast Ratio | 1000:1 | ||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||
| Motherboard Model Selection | JWS3288-I | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (4GB optional) | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64/128/256GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | Support | / | |
| Operating System | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||
| 5G | / | / | / | / | |
| WIFI | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||
| EDP | 1920*1080 60Hz output | ||||
| MIPI | Support 1920*1080 60Hz output | ||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||
| HDMI Input | HDMI Input, 24-pin FPC custom interface | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB | USB/IIC | ||

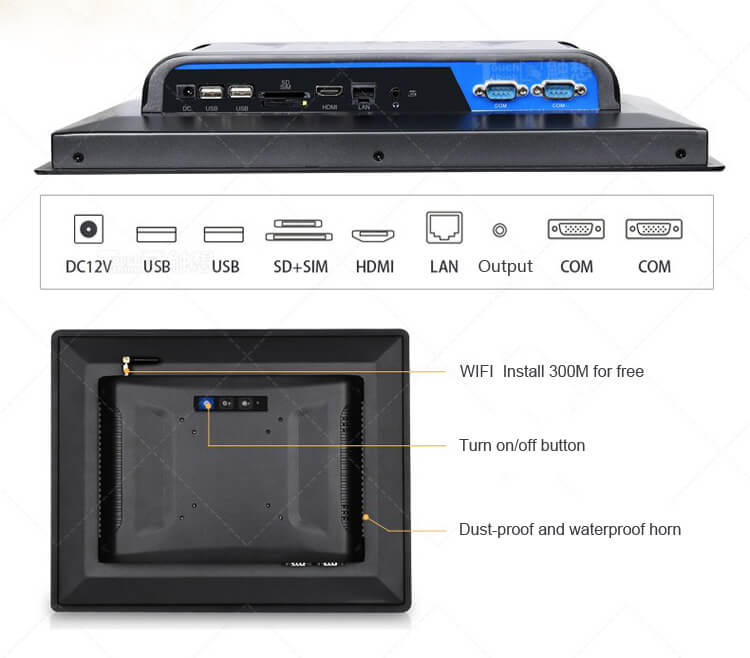

| I/O Ports | MICRO USB | / | / | / | / |
| USB 2.0 | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | |
| TTL | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | |
| CAN | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||
| MIC | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||
| I/O Expansion | Available | ||||
| Power | Power Input | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 352.48*276.42*65.5mm | |||
| Enclosure | Aluminum alloy housing | ||||
| Cooling System | Fanless | ||||

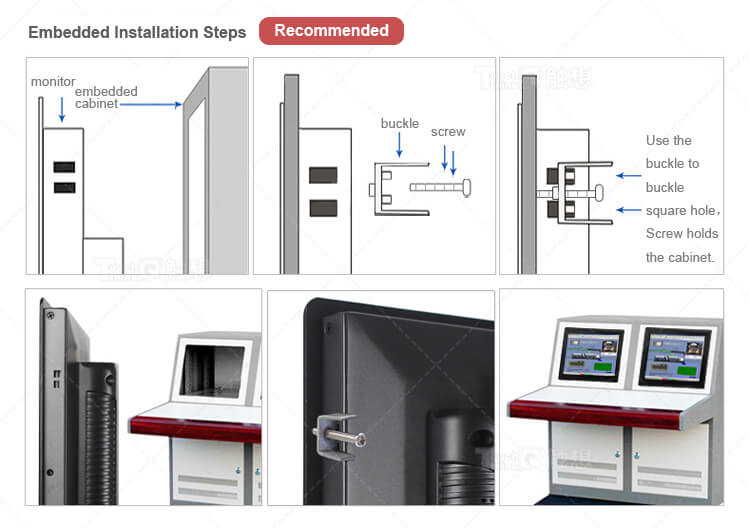

| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||
| Storage Temp | -30°C ~ 80°C | ||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||
| IP rating | Front IP65 | ||||
