Size: 19.1"
19.1" Sunlight Readable Android Panel PC with GPIO (General Purpose Input/Output) integration, designed to excel in outdoor environments where visibility is crucial, seamlessly combines the readability of a sunlight-resistant screen with the versatility of the Android OS, enhanced by GPIO capabilities for seamless integration with external devices.
Product Color

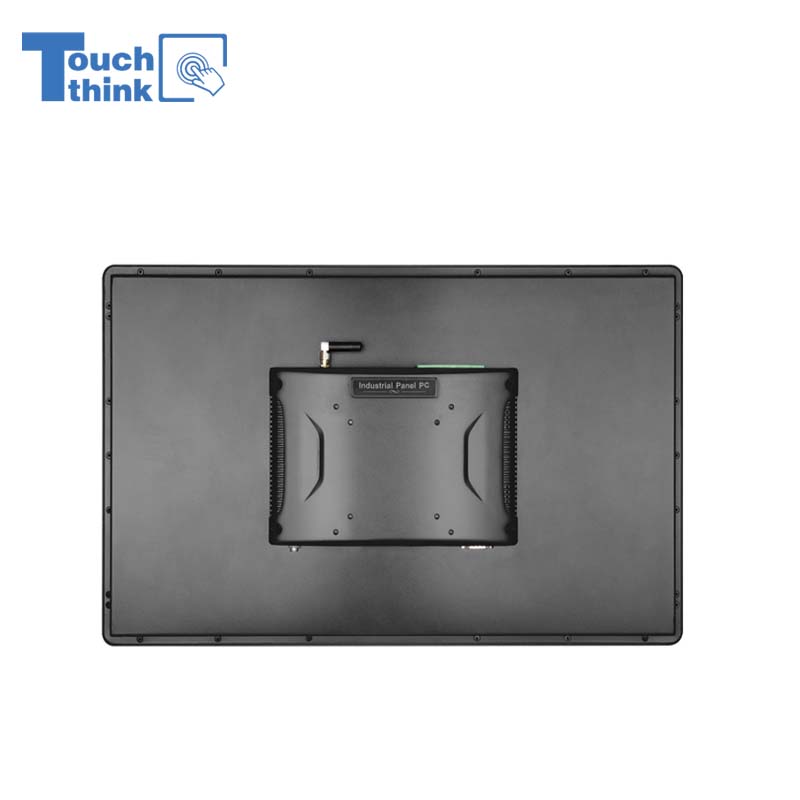

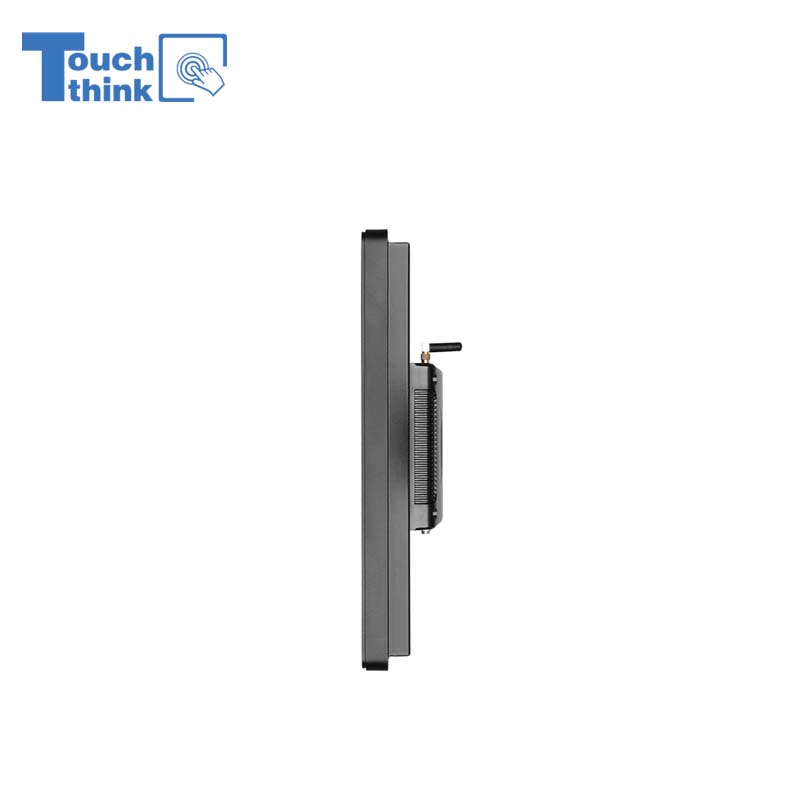

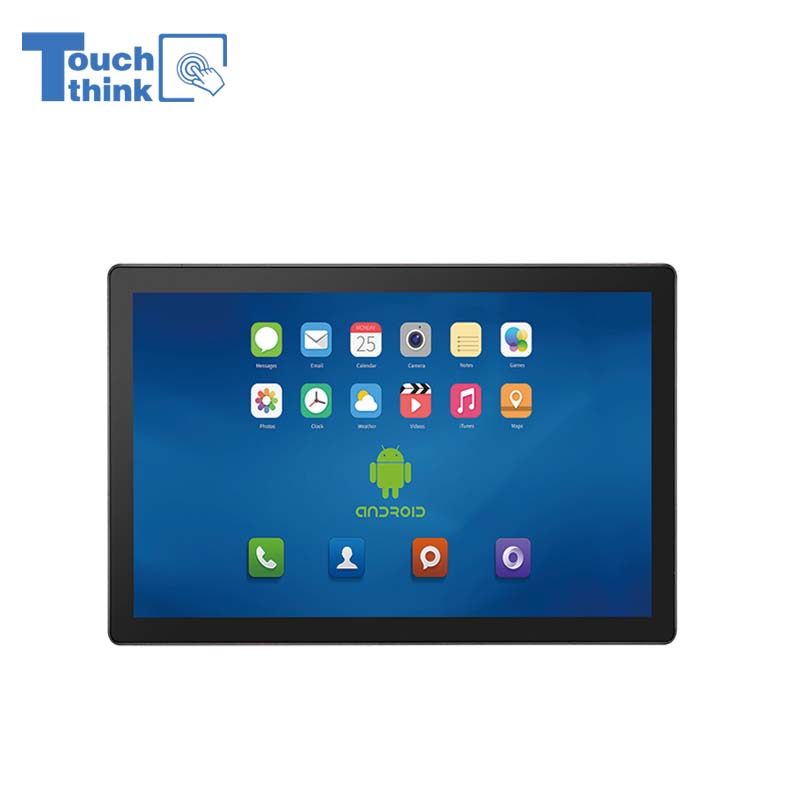

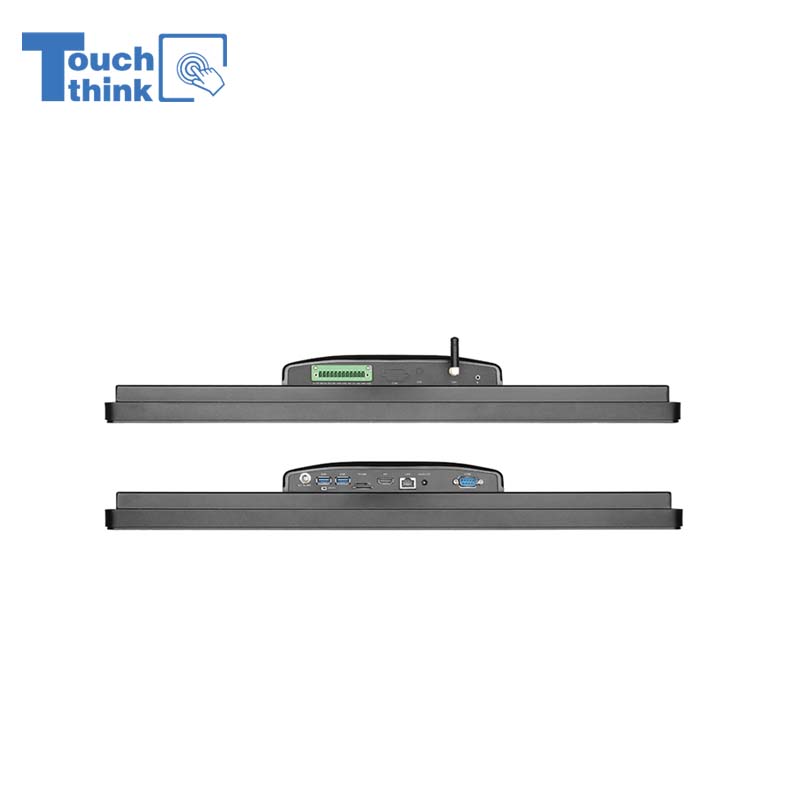

Sunlight Readable Android Panel PC with GPIO 19.1 inch
Model: TPC191-A19
Product Features
● 19.1-inch Sunlight Readable Display: Immerse yourself in an exceptional visual experience with the 19.1-inch sunlight-readable display. Designed to combat glare and maintain visibility even in direct sunlight, this panel PC ensures clarity and readability in outdoor settings.
● GPIO Integration: Unlock new possibilities for connectivity and control with GPIO integration. The General Purpose Input/Output functionality allows seamless communication with external devices, sensors, and equipment, enhancing the versatility of the panel PC in industrial applications.
● Rugged Design for Outdoor Durability: Built to withstand the challenges of outdoor environments, this panel PC boasts a rugged design. Resistant to dust, moisture, and varying temperatures, it ensures consistent and reliable performance in demanding conditions.
From outdoor kiosks to industrial installations, our Sunlight Readable Android Panel PC with GPIO, 19.1 inches, sets a new standard for visibility and connectivity in challenging environments. Elevate your operational capabilities, enhance control, and experience unwavering reliability with our innovative panel PC designed for seamless integration and superior readability outdoors.
Display Parameters | Size | 19.1" | |||
| Resolution | 1440x900 | ||||
| Screen Ratio | 16:10 | ||||
| Brightness | 250~300 nits (Optional high brightness) | ||||
| Contrast Ratio | 1000:1 | ||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||
| Motherboard Model Selection | JWS3288-I | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (4GB optional) | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64/128/256GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | Support | / | |
| Operating System | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||
| 5G | / | / | / | / | |
| WIFI | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||
| EDP | 1920*1080 60Hz output | ||||
| MIPI | Support 1920*1080 60Hz output | ||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||
| HDMI Input | HDMI Input, 24-pin FPC custom interface | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB | USB/IIC | ||
| I/O Ports | MICRO USB | / | / | / | / |
| USB 2.0 | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | |
| TTL | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | |
| CAN | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||
| MIC | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||
| I/O Expansion | Available | ||||
| Power | Power Input | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 470.6*318.6*66mm | |||
| Enclosure | Aluminum alloy housing | ||||
| Cooling System | Fanless | ||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||
| Storage Temp | -30°C ~ 80°C | ||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||
| IP rating | Front IP65 | ||||
