Size: 11.6"
Our industrial-grade Touch PC with RS485 connectivity, features an immersive 11.6-inch display. This robust computing solution is meticulously designed to meet the demands of industrial environments, offering a seamless and reliable user interface for diverse applications.
Product Color
Industrial Touch PC with RS485 11.6 inch
Model: TPC116-W19
Product Features
● The 11.6-inch touchscreen display provides an intuitive and interactive interface for users.
● P-Cap, Resistive Touchscreen, or Non-touch.
● Intel Celeron Processor, J6412/J4125/J1900 for optional.
● Customizable configuration: 4/8/16/32GB options for RAM, 64/128/256/512GB; 1T/2T HDD options for storage.
● Wide operating temperature range: -10°C～60°C.
● Equipped with RS485 communication, this Touch PC facilitates efficient data exchange and communication in industrial settings.
● Built to withstand challenging industrial conditions, this Touch PC boasts a rugged design.
● The Touch PC is versatile and adaptable to a range of industrial applications. From manufacturing control systems to process monitoring, its design allows for seamless integration into diverse industrial setups.
| Screen | Screen size | 11.6 inch | |||||
| Model | TPC116-W19 | ||||||
| Resolution | 1366*768 | ||||||
| Proportion | 16:9 Wide Screen | ||||||
| Color | 16.7M | ||||||
| Dot Pitch | 0.264mm | ||||||
| Contrast ratio | 1000:1 | ||||||
| Display luminance | 250~300cd/m2 (high brightness above 300cd/m2 is customizable) | ||||||
| Backlight type | LED-backlit screen Lifetime ≥ 50000h | ||||||
| Viewing angle | 85°/85°/85°/85° (L/R/U/D) | ||||||
| Touchscreen | Capacitive touch, resistive touch, and Non-touch for optional | ||||||
| Gray-scale Response Time | 6.5ms | ||||||
| Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | |||
| Config | CPU | Intel Celeron J1900, Quad-core, 2.0GHz | Intel Celeron J4125, Quad-core, 2.0GHz | Intel Celeron J6412, Quad-core, 2.0GHz | i3-1215U | i5-1235U | i7-1255U |
| Memory | 4GB (8GB options) | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
| Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
| GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
| Operating System | Win 7 / Win 10 | Win 10 / Win 11 | Win 10 / Win 11 | Win 10 / Win 11 | |||
| Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
| Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
| Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
| RTC | Support | Support | Support | Support | |||
| Wake On LAN | Support | Support | Optional | Support | |||
| 3G/4G module | Support | Support | Support | Support | |||
| WIFI | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | |||
| GPS/MIC | Optional | Optional | Optional | Support | |||
| Plug-n-Play | Support | Support | Support | Support | |||

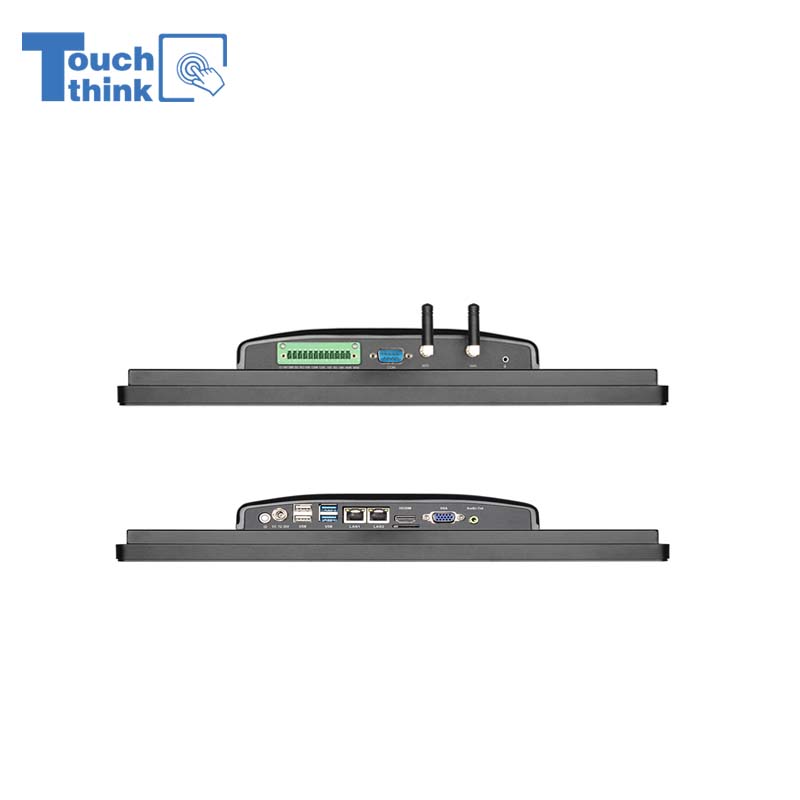

| I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
| Type-C | / | / | / | 2*type-c | |||
| USB 3.0 | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
| RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
| RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| GPIO | GPIO*8 (input/output) | ||||||
| WIFI connector | WIFI antenna*2 | ||||||
| DC Interface | DC 2.5*1; Supports 12V-36V wide voltage power supply | ||||||
| SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
| MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
| HDMI | 3840*2160 30Hz output | 4096*2160 30Hz output | 4096*2160 30Hz output | 4096*2304 60Hz output | |||
| VGA | 1920*1080 60Hz output | ||||||
| RJ45 | 2*10M/100M/1000M adaptive Ethernet | ||||||
| Audio Interface | Audio I/O | ||||||
| Earphone jack | 3.5mm standard interface | ||||||
| Reliability | Working Temp | -10°C～60°C | |||||
| Storage Temp | -20°C～70°C | ||||||
| Relative humidity | 95% (without condensation) | ||||||
| Power | Power input | DC in 12V ~ 36V | |||||
| Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||

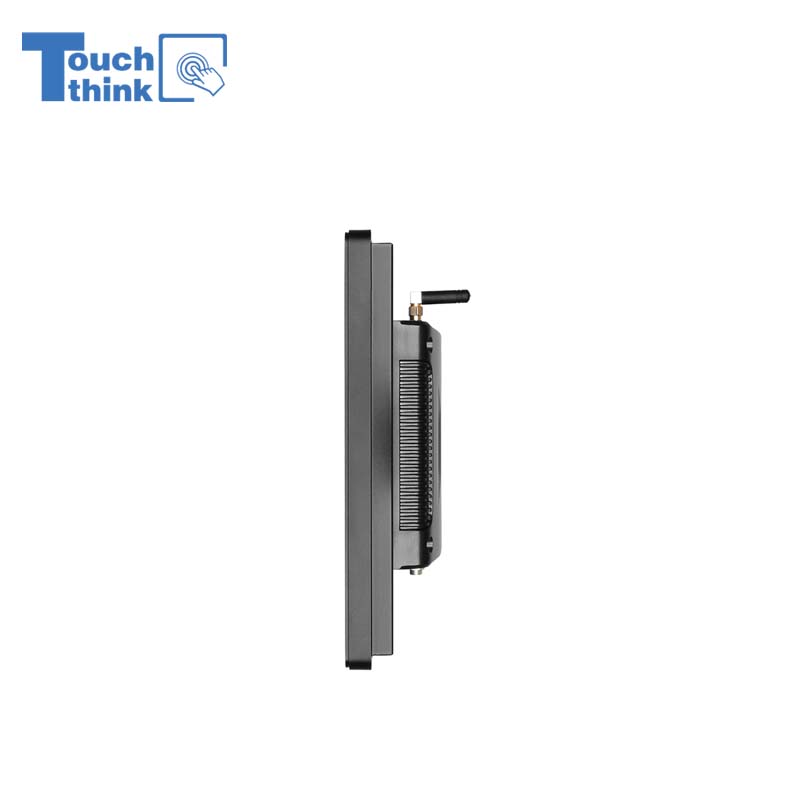

| Mechanical | Dimension | 308*196*47.9mm | |||||
| Material | Aluminum alloy material | ||||||
| Cooling System | Fanless | ||||||
| Color | Silver / Black | ||||||
| Installation method | Embedded mount, panel mount, desktop, wall-mounted, VESA 75/100mm. | ||||||
| Packaging | Warranty Policy | Three-year warranty, one year for free. | |||||
| Packaging material | Carton | ||||||
| Packing list | Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card | ||||||
