High Expandability Industrial Embedded PC with Expansion Slots

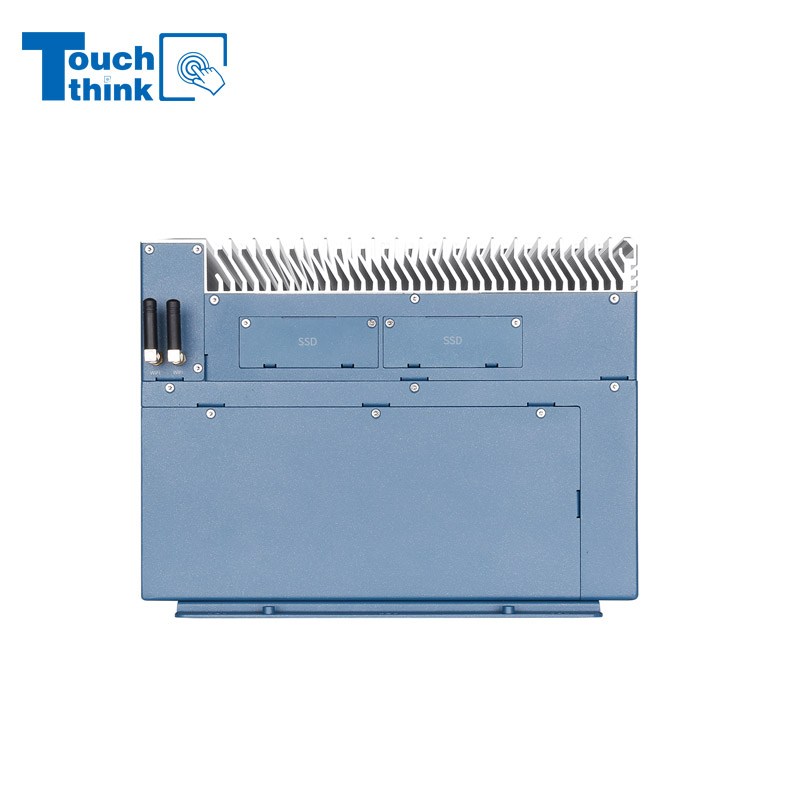

Quad-Slot Version Model: TPC07-WIPC

As industries increasingly adopt digital technologies and automation, the demand for versatile, high-performance computing solutions that can adapt to specific needs is growing. High Expandability Industrial Embedded PCs are designed to meet these demands, offering a combination of powerful processing, customizable expansion capabilities, and robust power input options. With features like PCIe x16 and PCIe x4 expansion slots, as well as a 9 to 36V wide voltage input range, these systems provide the flexibility and reliability needed for a wide range of industrial applications.

Product Features

● Intel® 12th Gen Core™ i CPU socket-type (LGA1700) with Intel® H610 PCH chipset, (Intel® 13/14th Gen Core™ options)

● RAM: 16GB, Supports 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, Max. 64GB

● Storage: 2*2.5" SATA3, 1*mSATA

● Extended Interface: 1*PCIE X16, 1*PCIE X4, 2*32 BIT PCI

● Wide operating temperature: -20°C ~ 70°C

● Display ports: 1*VGA, 1*HDMI, 1*DP

● Dual-LAN: 1000 Mbps+2500Mbps;

● Serial Ports: 2*RS-232/422/485, 2*RS-232/485, (6*Serial Ports upgradable)

● 9 ~ 36 VDC input power range

● Supports triple-screen display

● OS: Windows 10/11 (Linux/Ubuntu/Redhat/Debian options)

The Importance of Expandability in Industrial PCs

Industrial environments often require specialized hardware to interface with machinery, sensors, and other devices. This need for customization makes expandability a critical feature in industrial PCs. The ability to add or modify hardware components allows these systems to be tailored to specific tasks, whether it’s for machine vision, data acquisition, or high-speed communication.

High Expandability Industrial Embedded PCs come equipped with PCIe (Peripheral Component Interconnect Express) expansion slots, which provide a high-speed interface for adding various expansion cards. These slots enable the integration of additional functionality such as graphics processing units (GPUs), field-programmable gate arrays (FPGAs), network interface cards (NICs), and more, making these PCs adaptable to a wide range of industrial needs.

The availability of both PCIe x16 and PCIe x4 slots in a single system provides users with the flexibility to configure their embedded PC precisely according to their application requirements. Whether the task demands high-performance computing, additional I/O ports, or specialized communication interfaces, these expansion slots offer a solution.

PCIe x16 and PCIe x4 Slots: Expanding Possibilities

● PCIe x16 Slot: The PCIe x16 slot is ideal for adding high-performance components such as GPUs, which are increasingly used in industrial settings for tasks like real-time video processing, and machine learning. The PCIe x16 slot can also accommodate other high-speed expansion cards, such as advanced NICs or storage controllers.

● PCIe x4 Slot: The PCIe x4 slot provides ample bandwidth for many industrial applications. It is usually used for adding additional NICs, storage controllers, or other peripherals. The PCIe x4 slot is also useful for adding specialized interface cards for industrial communication protocols such as EtherCAT, PROFINET, or Modbus, enabling seamless integration with various industrial systems.

9 to 36V Wide Voltage Input: Ensuring Reliable Operation in Harsh Environments

Industrial environments often present challenges such as fluctuating power supply conditions, which can affect the reliability and longevity of electronic systems. To address this, High Expandability Industrial Embedded PCs are designed with a wide voltage input range, typically from 9 to 36 volts.

This wide voltage input offers several key advantages:

● Versatility in Power Sources: The ability to accept a broad range of input voltages allows these PCs to be powered by various sources, including batteries, uninterruptible power supplies (UPS), or industrial power systems. This versatility ensures that the embedded PC can operate reliably in diverse environments, from factory floors to remote outdoor installations.

● Protection Against Power Fluctuations: Industrial sites often experience power fluctuations, surges, and drops. The wide voltage input range helps protect the system from these irregularities, ensuring stable operation even in challenging conditions. This is crucial for maintaining uptime and preventing damage to sensitive electronic components.

● Enhanced Durability: By accommodating a wider range of voltages, these systems are inherently more robust and less susceptible to power-related failures. This durability is essential in industrial settings where equipment must operate continuously and reliably over long periods.

Conclusion

High Expandability Industrial Embedded PCs equipped with PCIe x16 and PCIe x4 expansion slots and a 9 to 36V wide voltage input are powerful solutions for modern industrial applications. Their modular design allows for easy customization, making them adaptable to a wide range of tasks, from high-performance computing to specialized industrial control. The wide voltage input further enhances their reliability, ensuring they can operate in even the most challenging environments. As industries continue to advance toward more automated and connected operations, these expandable embedded PCs will play a crucial role in driving innovation and maintaining operational efficiency.

The combination of PCIe expansion slots and wide voltage input makes these industrial embedded PCs suitable for a variety of applications across different industries:

Machine Vision: In automated inspection and quality control processes, the PCIe x16 slot can be used to add high-performance GPUs or frame grabber cards, enabling real-time image processing and analysis. The system’s ability to operate in fluctuating power conditions ensures consistent performance in demanding environments.

Automation and Control: These PCs can be customized with additional I/O cards, motion control cards, or communication interfaces via the PCIe x4 slots, making them ideal for controlling complex machinery, robotics, or other automated systems. The wide voltage input supports integration with various industrial power systems, ensuring reliable operation.

Industrial Networking: The PCIe slots allow for the addition of multiple NICs, enabling these PCs to serve as industrial gateways or routers, connecting various subsystems within a factory or across multiple sites. The wide voltage input ensures that these networking devices remain operational even during power fluctuations.

Data Acquisition: In applications requiring extensive data collection and processing, such as environmental monitoring or energy management, the PCIe slots can be used to add specialized data acquisition cards. The system’s robust power management capabilities ensure continuous operation in remote or harsh environments.
