Size: 7" - 21.5"
With the industrial LCD VESA mount monitors, Touch Think has the ability to offer ideal display solutions for rugged environments where exist water splashes, dust, dirt, moisture, oil, chemicals, and other typical conditions that will threaten the display system during operation.
Product Color
Industrial Touch Display Monitor VESA Mount
Touch Think industrial monitors support the VESA arm, VESA stands to mount, which are popular in industrial automation production lines, it's a very rugged IP65-rated dust-proof and waterproof, adopts TFT LCD full flat panels, Full-High Definition up to 1920 x 1080. The enclosure is constructed of Aluminum alloy which has better heating dissipation, corrosion-resistant. The industrial-grade sunlight-readable IP65 TFT LCD monitor is designed for use throughout a wide range of applications of harsh outdoor equipment. They are designed with rugged LCD displays and are compliant with very strict industry standards and are designed to withstand severe environments such as water, dust, and dirt intrusion.
The monitors are designed with strong impact-resistant performance in harsh environments: we have multi-types of industrial monitors that support VESA mount ( front bezel: 7mm / 8mm / 10mm optional).
Touch Think VESA Mount Monitors Features
● Multi display sizes: 7" / 8" / 10.1" / 10.4" / 11.6" / 12" / 12.1" /15" / 15.6" / 17" / 17.3" / 19" /19.1" / 21.5" optional according to different series.
● PCAP touchscreen, resistive touchscreen, or non-touchscreen (mouse control) optional.
● Support 300nits to 1500nits high brightness sunlight readable LED/LCD panels.
● These industrial monitors are easily integrated into automation applications.
● Support most system boards: DP, HDMI, VGA interfaces, and more.
● Up to 50000hrs MTFB long span-life panels, LED backlight.
● USB touch screen and RS-232 optional.
● True Industrial Grade LCD Panel
● Operating Temperature: -4°F ~ 140°F.
● IP65 front bezel.
● 3-year warranty.

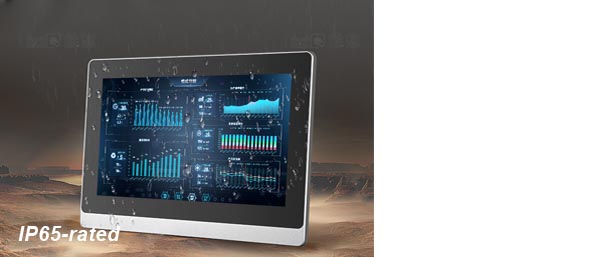

IP65 Rated Dustproof and Waterproof Front Bezel
Touch Think VESA mount touch screen monitors with IP65 rated dustproof and waterproof make them widely used in a variety of applications. Especially, the front waterproof features are popular in industrial sites. Far more, our VESA mount monitors also support fully IP65 protection customization.
24/7 Long Time Working
Due to the particularity of the use environment, the industrial monitors need to run for a long time, or even without shutting down for a 24/7 long time, which need the monitors to run for a long time and can maintain stability and reliable lifespan.
EMC/EMI Shielding
VESA mount industrial touch monitors are widely used in digital factories' smart production lines. And there is a variety of equipment are installed in workshops, thus release much electromagnetic and cause signal interference. Electromagnetic interference not only affects the normal operation of electronic equipment but even causes damage to certain components in electronic equipment.
Our industrial displays have passed the electromagnetic compatibility test and certification to ensure work normally without the surrounding electromagnetic interference. At the same time, the monitors also ensure that they won't cause electromagnetic interference to other surrounding equipment and affect the normal operation of other equipment.
VESA 75/100mm Suit For Any Equipment
Touch Think industrial touch monitors support VESA 75/100mm installation. The VESA mount monitor is composed of a display, a cantilever, and a control panel, and supports a variety of coupling connectors for cantilever support profiles, which is suitable for most factory use scenarios.
Compared with the traditional installation, VESA mount monitors have the advantages of being beautiful, practical, strong applicability, easy to use, etc.
| Screen parameters | Screen size | 7 inch to 21.5 inch |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160 (Customizable 178° full view angle) | |
| Brightness | 400cd/m2 (customizable high brightness) | |
| Touch type | Resistive / capacitive / infrared touch screen | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC | EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy casing | |
| Installation method | VESA 75/100mm, (Embedded, desktop, wall-mounted optional) | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |
| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |

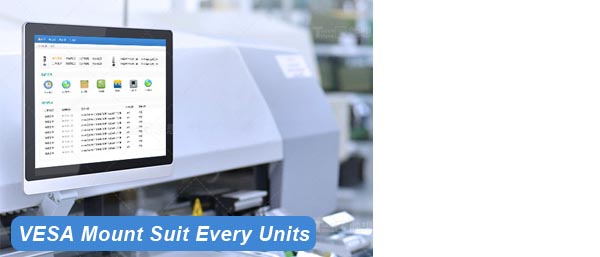

Touch Think VESA mount touch screen monitors are widely used in industrial automation fields, especially used as workstation displays on the production line or assemble line in the digital factory, intelligent workshop.
We offer OEM/ODM customization service for global customers, please feel free to contact us for details.
