Size: 15.6
· 10mm ultrathin front panel · working temperature range：-10°～60° · 365*24 hours whole days operation · IP65 dustproof and waterproof
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”
Touch Think sunlight readable LCD industrial monitor displays offer high-performance capacitive, resistive, and non-touchscreen in industrial-grade LCD flat panels, with thin flat front surface industrial design. The touch screen LCD monitor is designed for indoor and outdoor applications, such as kiosks, self-service devices, digital signage applications.
1. The updated fourth generation of Touch Think industrial displays designed with 10mm thickness front bezel, strong impact resistance, and well-embedded into other equipment.
2. The fully-enclosed aluminum alloy enclosure, higher heat-dissipation than iron materials.
3. IP65 level water-proof and dust-proof for the front panel. The standard color is black, silver, We also support appearance customization for monitors, even for one unit.
4. Support capacitive touch and resistive touch screen, suitable for all kinds of harsh environments.
5. Thin narrow bezel design, exquisite craft aesthetic design, narrow frame with rounded corners, back key panel, exquisite arc side, pre-installed waterproof speaker hole, 10mm thickness front panel, well impact resistant.
6. Fanless cooling system, no noise running, better heat dissipation.
7. Back button panel, easy debugging, the industrial monitor support VGA, HDMI, DVI, etc. Offer automatic identification signal channel.
8. Self-developed industrial-grade display drive board, quality is well-guaranteed.
9. Support wide temperature and wide voltage, adopt the famous brand of power management chip design, the wide voltage reaches 12-24V. Ensure industrial monitors perform stably under harsh environments.
10. Industrial monitors support long standby time and stable performance, adopt original professional hardware, support 7*24 hours long-time running without interruption.
11. For all aspects of quality, customers will get a better user experience. The industrial monitor support anti-jamming, compliance with EMC/EMI standard. Shockproof up to GB2423.
12. Support multi installation methods, such as desktop, VESA, wall-mounted, embedded, etc.
Application of Touch Think Industrial Monitors
| Screen parameters | Screen size | 15.6 inch |
| Model | TPC156-M4 | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 widescreen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160 (Customizable 178° full view angle) | |
| Brightness | 400cd/m2 (customizable high brightness) | |
| Touch type | Resistive / capacitive / infrared touch screen | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, cantilever | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |

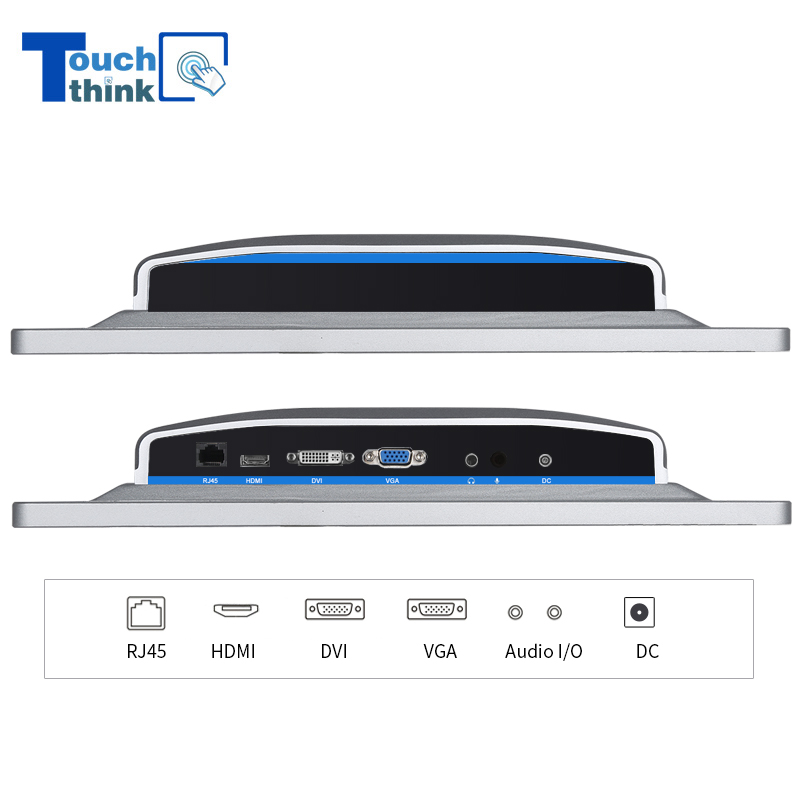

| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
