Android Industrial Computer Wall Mount 15.6"

Size: 15.6"

Touch Think 4th-GEN industrial-grade Android tablet PC features an enhanced front bezel, and offers excellent impact-resistant performance in manufacturing environments. Supports 24/7 long-time operation.

Product Color

Black Silvery

Inquiry Now Next Product

product description
Product parameters
Application
OEM/ODM

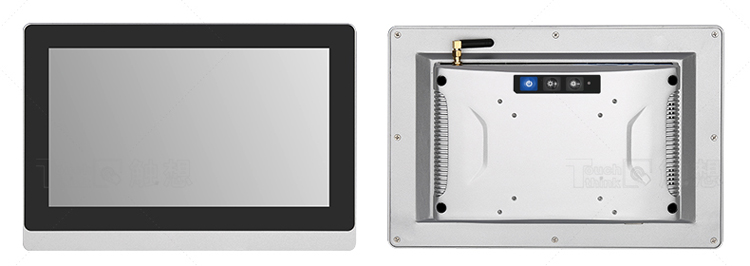

Android Industrial Computer Wall Mount 15.6"

Model: TPC156-A4

Touch Think 4th-GEN Series 15.6-inch Android all-in-one (AiO) adopts an industrial-grade touchscreen delivering a responsive all-in-one ( AiO ) computer in a compact size. The AiO system delivers flexible mounting options, industrial reliability, and integrated touch. Designed for reliable operation under the rigors of continuous public use for self-service vending machines, point of sale, self-selling tickets, touchscreen kiosks, wayfinding, and corporate and hospitality environments.

Touch Think Industrial Android all-in-one PCs Display

Android Industrial Computer Wall Mount 15.6"

Touch Think All-in-one Panel PCs Features

● 15.6" true flat-panel touchscreen PC

● Processors Options:

- Allwinner A64: Quad-Core 1.2GHz, Cortex-A53

- Rockchip RK3288: Quad-Core 1.8GHz, Cortex-A17

- Rockchip RK3399: Six-Core 1.8GHz, Dual-Core Cortex-A72 + Quad-Core Cortex-A53

- Rockchip RK3568: Quad-Core 2.0GHz, Cortex-A55

- Rockchip RK3588: Octa-Core 2.4GHz, Quad-Core Cortex-A76 + Quad-Core Cortex-A55

● RAM Options: 2/4/8/16/32GB options

● Storage Options: 8/16/32/64/128/256GB options

● IP65-rated dust and water protection for the front bezel, reliable operation in harsh environments.

● Wide range power input: 12~36V DC

● Fanless design, perfect heating-dissipation performance, and no dust

● The panel PCs offer multiple mounting methods that make it easy to install into equipment, machinery, walls, manufacturing lines, workstations, and vehicles.

● Variety of Applications: With their mounting abilities, these Android panel PCs are perfect for HMI replacement, OEM projects, machine control, and data acquisition. They are designed for long-time running without stopping 7*24 hours around the year.

● Touch Think supports various customization services in terms of the functional module, appearance colors, installation methods, etc.

Touch Think Industrial Android PC Customization Service


Screen Parameters	Display size		15.6 inch
	Gray-scale response time		5ms
	Panel type		Industrial control A level screen with TFT
	Point distance		0.264mm
	Contrast		1000:1
	Backlight type		LED, span life≥50000h
	Display color		16.7M
	Visual angle		85/85/85/85(L/R/U/D)
	Brightness		300cd/m2 (high brightness screen options)
	Touch-type		Resistive / Capacitive / Mouse control

Hardware Configuration	Motherboard Model	JWSA64-I-C	JWS3288-I	CX3399-A	CX3568-A	CX3588-A
	CPU	A64 Quad-Core 1.2GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz
	Memory	2GB DDR3 (8GB optional)	2GB DDR3 (4GB optional)	4GB DDR3	2GB DDR3 (4GB optional)	8GB DDR3
	Storage	16GB eMMC (32/64GB optional)	16GB eMMC (32/64GB optional)	64GB eMMC (256GB optional)	32GB eMMC (64/128/256GB optional)	64GB eMMC (128/256GB optional)
	Chipset	Intel Bay Trail SOC	Intel Bay Trail SOC	Intel Bay Trail SOC	Intel Bay Trail SOC	Intel Bay Trail SOC
	Operating System	Android 6.0	Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0	Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4	Android 12 / Linux 5.10 / Ubuntu 20.04 / Debian 11	Android 13.0
	GPU	Mali-T764	Mali-T764	ARM Mali-T860 MP4	ARM Mali-G52 MP2	ARM Mali-G610 MP4
	3G/4G/5G Module	Support (Optional)	Support (Optional)	Support (Optional)	Support (Optional)	Support (Optional)
	WIFI	2.4G (dual-band 2.4/5G optional)	2.4G (dual-band 2.4/5G optional)	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G
	Bluetooth	BT4.2	BT4.2	BT4.2	BT5.2	BT5.2
	GPS	Optional	Optional	Optional	Optional	Optional
	MIC	Optional	Optional	Optional	Optional	Optional
	RTC, real-time clock	Support	Support	Support	Support	Support
	Timing Turn On/Off	Support	Support	Support	Support	Support
	System Upgrade	-	Support SD, and USB upgrade	Support USB upgrade	Support USB upgrade	Support USB upgrade

Other Parameters	Power consumption		≤35W
	Power input		AC 100-240V, 50/60HZ
	Power Output		DC 12V / 4A
	Anti-static		Contact 4KV-air 8KV (≥16KV can be customized )
	Anti-vibration		GB2423 standard
	Anti-interference		EMC \| EMI anti-electromagnetic interference
	Dustproof and waterproof		IP65 dust-proof and waterproof for the front panel
	Housing material		Black/Silver, Aluminum Alloy
	Installation method		Desktop, wall-mounted, VESA75/100mm options
	Relative humidity		95%, Non-Condensing
	Working temperature		-10°C～60°C (-30°～80°C customizable)
	Language menu		Chinese, English, German, French, Korean, Spanish, Italian, Russian

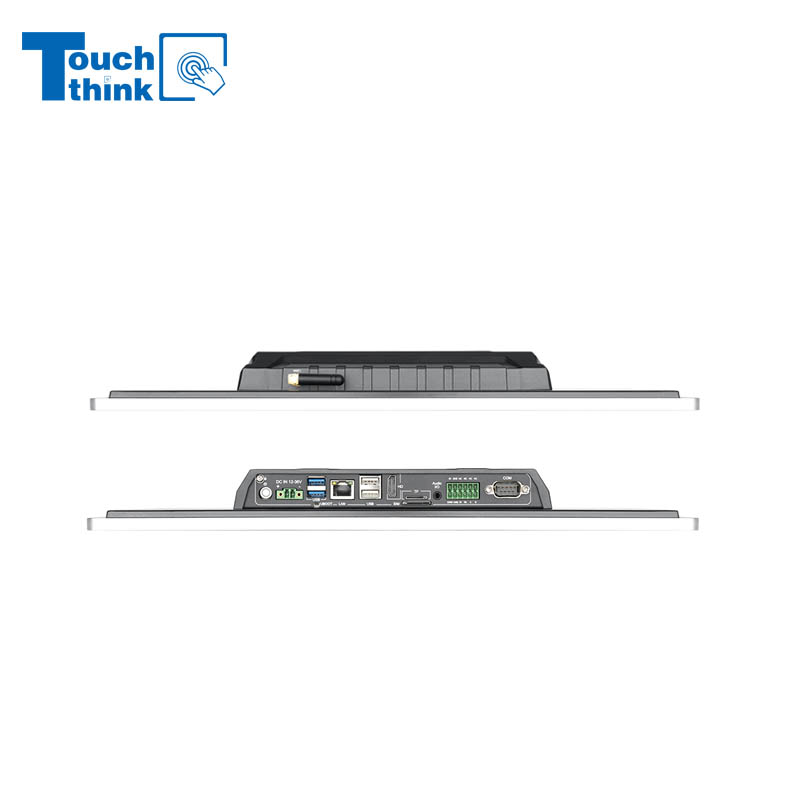

I/O Interface	Signal Interface		DVI, HDMI, VGA
	Power connector		DC with ring attachment (optional DC terminal block)
	Touch interface		USB I/O Interface
	Other interfaces		Audio input and output

15.6-inch industrial Android panel PC offers reliable industrial-grade display and computing solutions in fields of industrial automation, production lines, electrical automation, medical, transport, smart building systems, smart retail, and more.

15.6-inch industrial Android panel PC supports multiple OEM and ODM services in terms of appearance, colors, logo, screen, functions modules, and more. Please contact us and tell us your custom requirements.
