Size: 15
Multiple data transmission and network connectivity. Bluetooth 4.0. Support WiFi, RFID reader (NFC supported), GPS.
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”
Android Panel PC Factory Supply 15"
The 15-inch Touch Think 4th-GEN series industrial all-in-one Android panel PCs are adopt to
latest technologies make Human-Machine Interactions more versatile. This newest designed 4th-
generation industrial panel PCs come up with slim, smart, and interactive HMI to satisfy the grow-
ing demand for smart devices, self-service, automation, iOT and other fields. By connecting to the
centralized database, the HMI can provide real-time updates data and information, suitable for the
building automation, room management systems, industrial machine control, self-service systems,
and R&D labs. Touch Think have provided with thousands of solutions for customers from global
market, those solutions are ideal for companies looking to increase their operational efficiencies,
reduce expensive cabling costs and power consumption.
Touch Think 15-inch Android Tablet PC Display
Features of Touch Think Android Industrial Tablet PC
1. Applications for industrial automation, embedded system, Internet of Things (IoT).
2. Flexible touch, offer multi-control capacitive touch screen, fast response.
3. Android-based, integrated CPU, RAM, data storage. Multi-interfaces for difference applications,
support port expansion function.
4. All Aluminum alloy housing designed for harsh and industrial environments.
5. Support open frame, desktop, panel, wall, embedded and VESA arm mounting.
6. Technical support for drivers, hardware, including troubleshooting procedures, and general system
issues.
7. Customer service and sales support for product selection, order management, and warranty status.
Customization Service for Touch Think Industrial Panel PC with Android OS
Screen Parameter | Screen Size | 15 inch |
Type | TPC150-A4 | |
Resolution | 1024*768 | |
Aspect Ratio | 4:3 square size screen | |
Motherboard Parameter | CPU | Default with A64 Cortex-A53 Quad-Core 64 Bits 1.5GHz (RK3399 Cortex-A9 Quad-Core 1.6GHz, or RK3288 Cortex-A17 Quad-Core 1.8GHz optional ) |
Hard disk | 8G EMMC ( 4G/16G/32G/64G optional ) | |
RAM | 2GB DDR3 ( 4G/8G optional ) | |
ROM | 2KB EEPROM | |
Operating System | Android 6.0 ( Android 5.1/7.0 optional ) | |
Decoding Resolution | Support 1080P | |
Play Mode | Support timing, circulation, and broadcast mode | |
Network format | 3G, 4G, Ethernet, support wifi, Wireless peripherals | |
Picture format | Support BMP、JPEG、PNG、GIF | |
RTC | Support(The mixed cell) | |

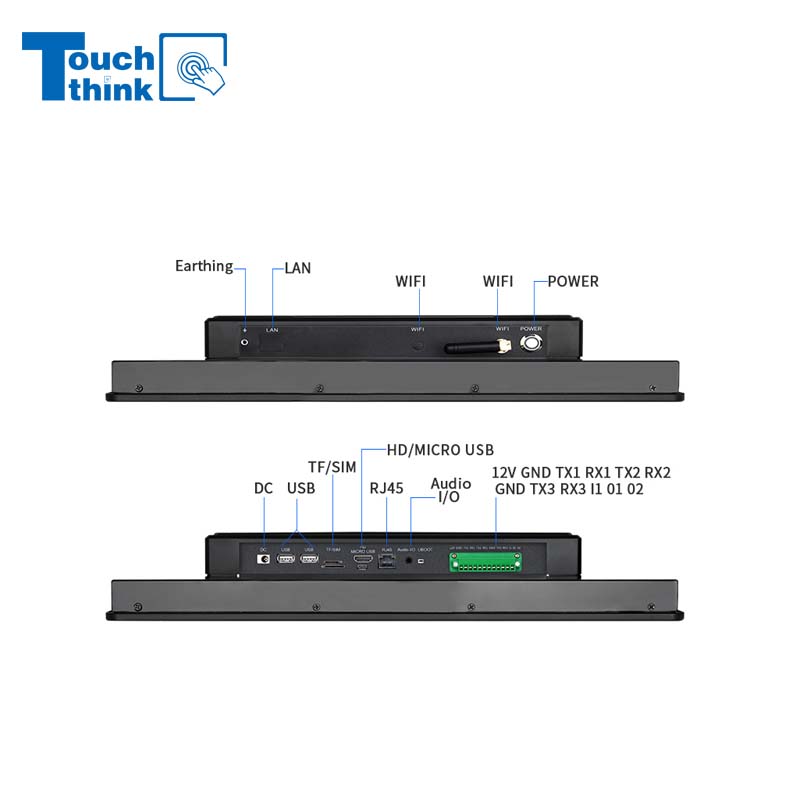

Ports Parameter | USB port | USB2.0(OTG)*1,USB2.0(HOST)*1 |
COM port | 8"-10.4":COM*1,other size:COM*2,Default RS232 protocols, 422/485 protocols optional | |
WIFI port | WIFI antenna*1 | |
Power port | DC 12V*1 | |
HDMI port | HDMI*1 | |
Card slot | SIM card slot*1,TF card slot*1 | |
Lan port | RJ-45*1 | |
Audio port | Audio I/O | |
Support extended | Multiple industry interfaces support customization | |
LCD screen Parameter | Color | 16.7M |
Dot pitch | 0.264mm | |
TFT | Industrial A standard screen TFT panel | |
Contrast | 1000:1 | |
Luminance | 400cd/m2(High brightness can be customized above 400cd/m2) | |
Visual Angel | (H160(V)160,Customizable WVA 178° | |
Backlight | LED backlight life≥50000h | |
Response time | 5ms | |
Touch option | Capacitive/Mouse Control | |
Installation ways | Embedded、Desktop、Wall mount、Cantilever type | |
Others | Power adapter | 12V-5A Professional external power adapter |
Power Dissipation | ≤60W | |
Operation Temperature | -10℃~60℃ | |
Storage Temperature | -20℃~60℃ | |
Relative Humidity | 0%-65%(non-condensing) | |
Material | Full aluminum alloy metal material | |
Color | Silver/Black | |
Warranty Policy | The whole machine is guaranteed free for one year | |
IP grade | IP65 for the front bezel | |
Packing list | Industrial Android Panel PC/install fittings/Power Cable/Power Adapter/Driver CD/Instruction Book/Warranty Card |

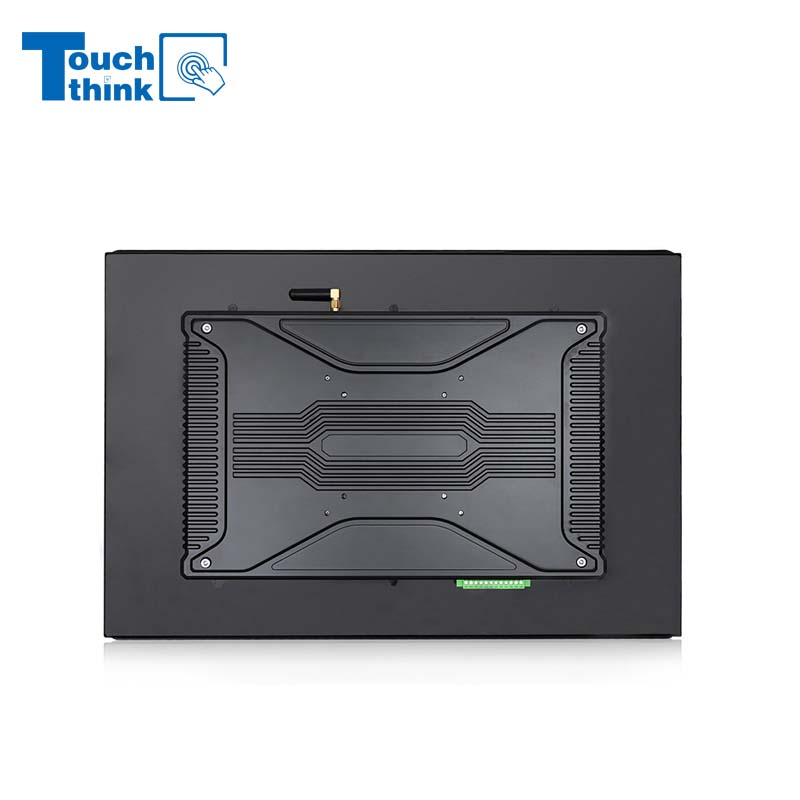

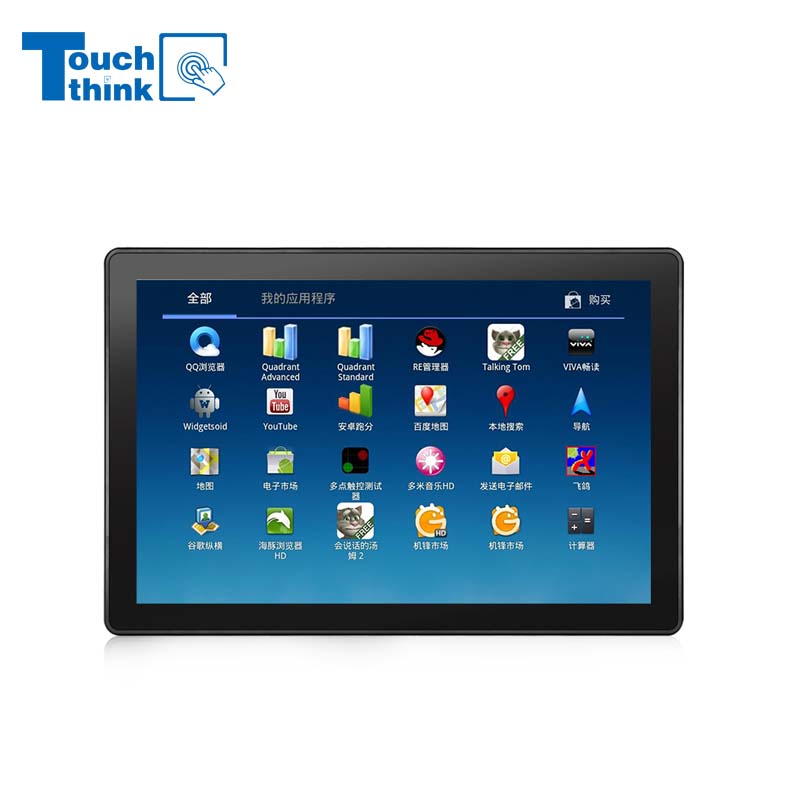

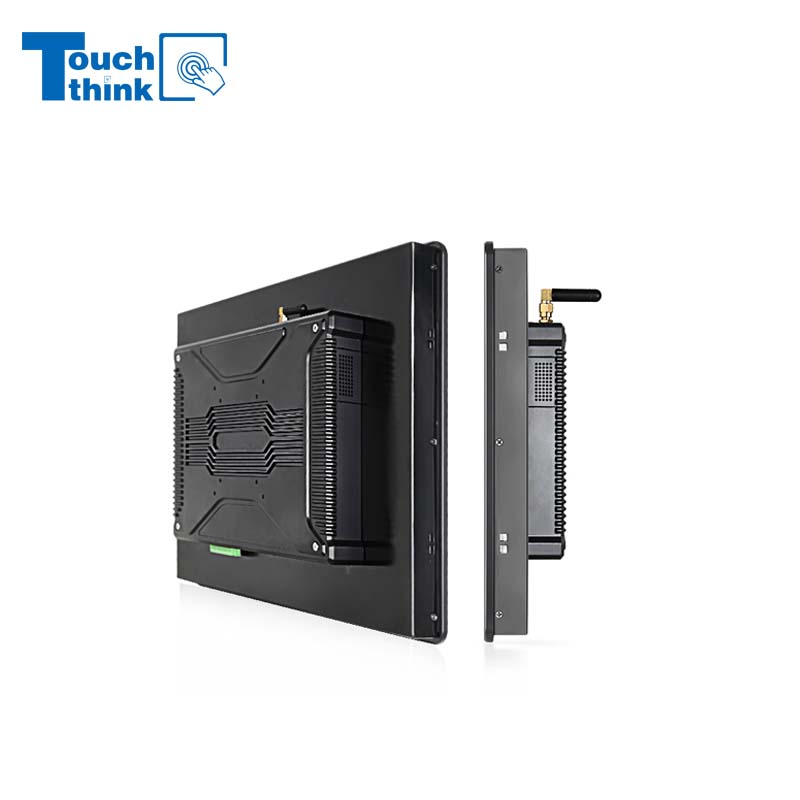

15-inch industrial Android panel PC
15-inch industrial Android panel PC
